| Category | Home, Commercial |
| State | New |
| Power | 29 kW |
| Number of ports | 2 |
| Port type | Cable Type 1 (J1772) (US) 7 kW, Cable Type 2 (EU) 22 kW |
| Smart | No |
| RFID | No |
| Type of fastening | Wall-mounted |
| High-voltage | 380 V (3 phases) |
| Connector type | Cable Type 1 (J1772) (US), Cable Type 2 (EU) |
| Product type | Charging station |
| Manufacturer | ТОКA |

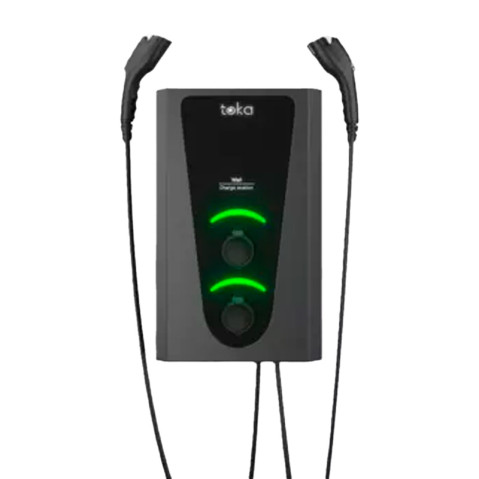

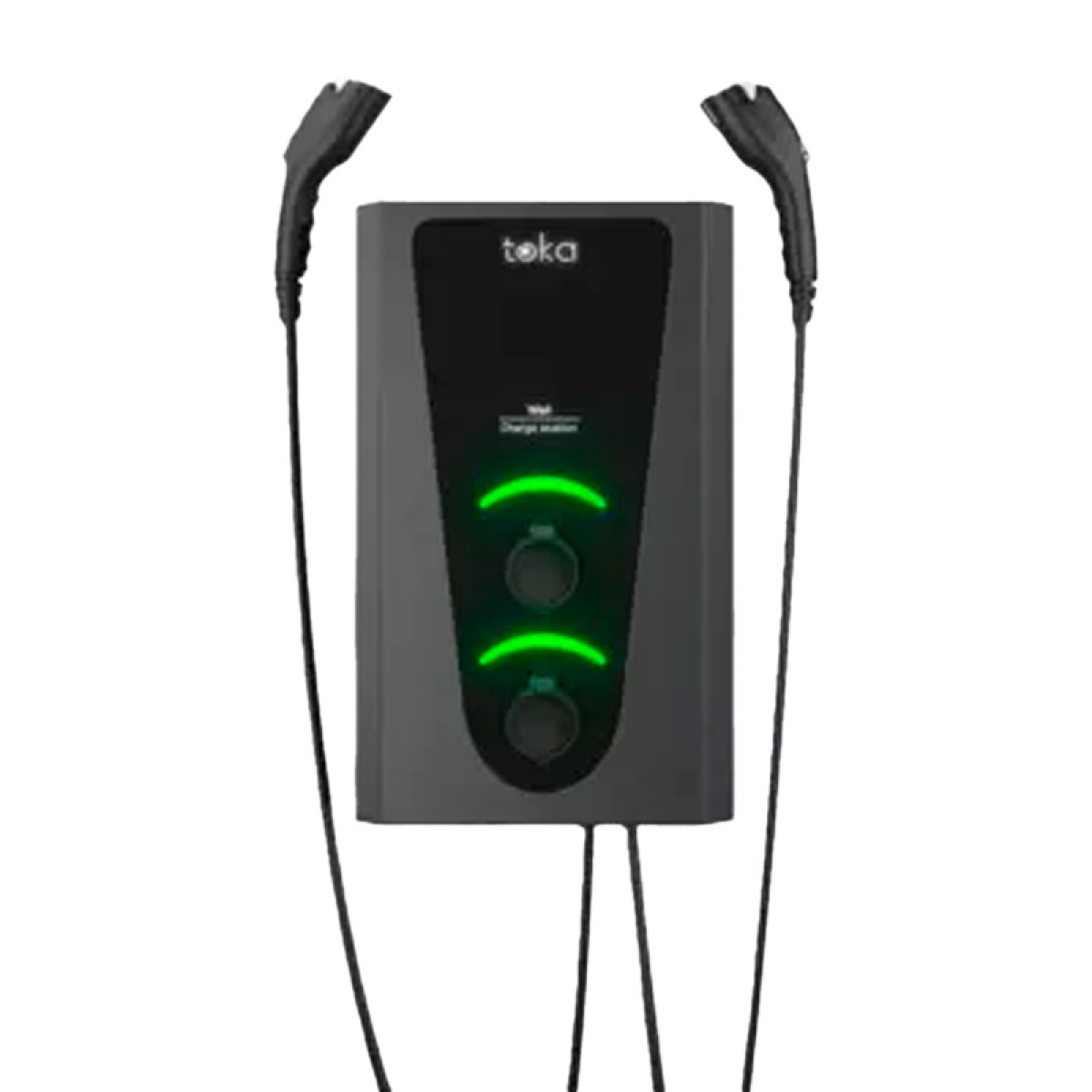

CURRENT W229-C1-C22 – is a 2-port charging station of Ukrainian production. Type 1 / Type 2 Station capacity up to 29 kW.
Suitable for both home use (garage, parking lot, condominium area), and for closed business parking lots, hotels.
TOKA charging stations are easy to use and reliable. They have 6 levels of protection and are equipped with additional functions:
- RCDs (residual current devices)
- Differential protection against leakage current
- Checking the quality of grounding
- No voltage in the connector in standby mode
- Output overcurrent protection, input overvoltage protection
- Short circuit protection
- Power contactor sticking control
- Temperature control.
- Weatherproof. Can be installed both indoors and outdoors.
Features of TOKA W229-C1-C22 :
- Own-developed electronics
- Stylish, laconic design with dynamic LED display
- TOKA's proprietary technology
- It has a durable vandal-proof housing with protection level IP55 and IR 10
Efficiency
Electric charging stations are designed to optimize the charging process and make it as easy as possible for the user. However, conventional sockets cannot provide an efficient charging mode, which can ultimately affect the lifespan of the electric vehicle battery.
Power balancing between ports
Automatic power sharing when two cars are connected. The sharing function can be turned on or off. Works with 1-phase, 2-phase and 3-phase connections.
Works without overloading the networks thanks to a special TOKA Power Manager device, which balances power and ensures that the network is not overloaded. Increases or decreases the power level of the station depending on the network load at a particular moment. It is possible to install several charging stations at the same location.
Comfort
Ability to set charging schedules to use electricity during off-peak hours when the cost is lower. Convenient and intuitive to use, even if you are using such equipment for the first time.
Speed
Charging stations offer faster charging speeds compared to regular household sockets, saving you a lot of time.
User access control
They can optionally be equipped with an RFID reader, which allows you to restrict access to others and activate the charging process using the access cards supplied in the kit.
Compatibility
Compatible with any electric vehicle!
